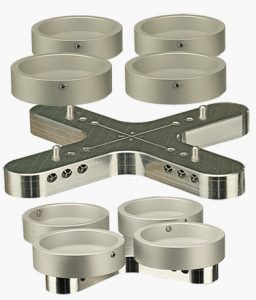

The innovative EM-Tec XL100 multi holder has been designed to hold 4 large SEM sample stubs or 4 SEM sample holders up to a diameter of 53mm. This holder is intended for use on large SEM sample stages with an X-Y travel range of 100x100mm or more. This practical and affordable holder greatly increases productivity for multiple sample imaging and analysing tasks. The EM-Tec XL100 multi holder can also be used on smaller stages in combination with the EM-Tec XT off-centre stage extender strips.

The unique X shape of the holder saves weigth, enables easy loading and securing stubs or holders on the EM-Tec XL100 multi holder. At the centre of the Em-Tec XL100, the engraved X and numbers enable easy identification of each “leg”. Supplied with additional stub extenders to increase height and to bring the holders closer to the pole piece if flat samples need to be imaged or analysed.

Compatible SEM sample stubs for the EM-Tec XL100 multi holder are:

• Standard pin sample stubs with 25.4, 32, 38 and 50mm diameter
• Short Zeiss pin sample stubs with 25.4, 32, 38 and 50mm diameter
• Hitachi M4 threaded cylinder sample stubs with 25, 32 and 50mm diameter

Compatible EM-Tec SEM sample holders are:

• EM-Tec bulk sample holders R32 and B26
• EM-Tec Metallographic mount holders M26, M32 and M40
• EM-Tec multi pin stub holders P4, P6 and P8
• EM-Tec filter holders F35 and F47 (coming soon)

The EM-Tec XL100 increases productivity by holding multiple large samples which reduces venting and pumping times. Additionally, multiple samples can be analysed in a single session without operator interference (overnight operation).

Specifications of the EM-XL100 multi holder:

Holder	EM-Tec XL100, pin	EM-Tec XL100, M4
Product #	12-000281	12-000381
Stub holding	Standard Ø3.2mm pin	Standard Ø3.2mm pin & M4 thread
Stub sizes	Ø25, Ø32, Ø38 and Ø50mm	Ø25, Ø32 Ø38 and Ø50mm
Stage adapter	Standard Ø3.2mm pin	M4 threaded hole
Stub expender	2 x 10mm (#11-000210)	2 x 10mm (#11-000309)
Material	aluminim
Dimensions	90 x 90 x10mm
